Inogec
AGV

Platform series

What you can do

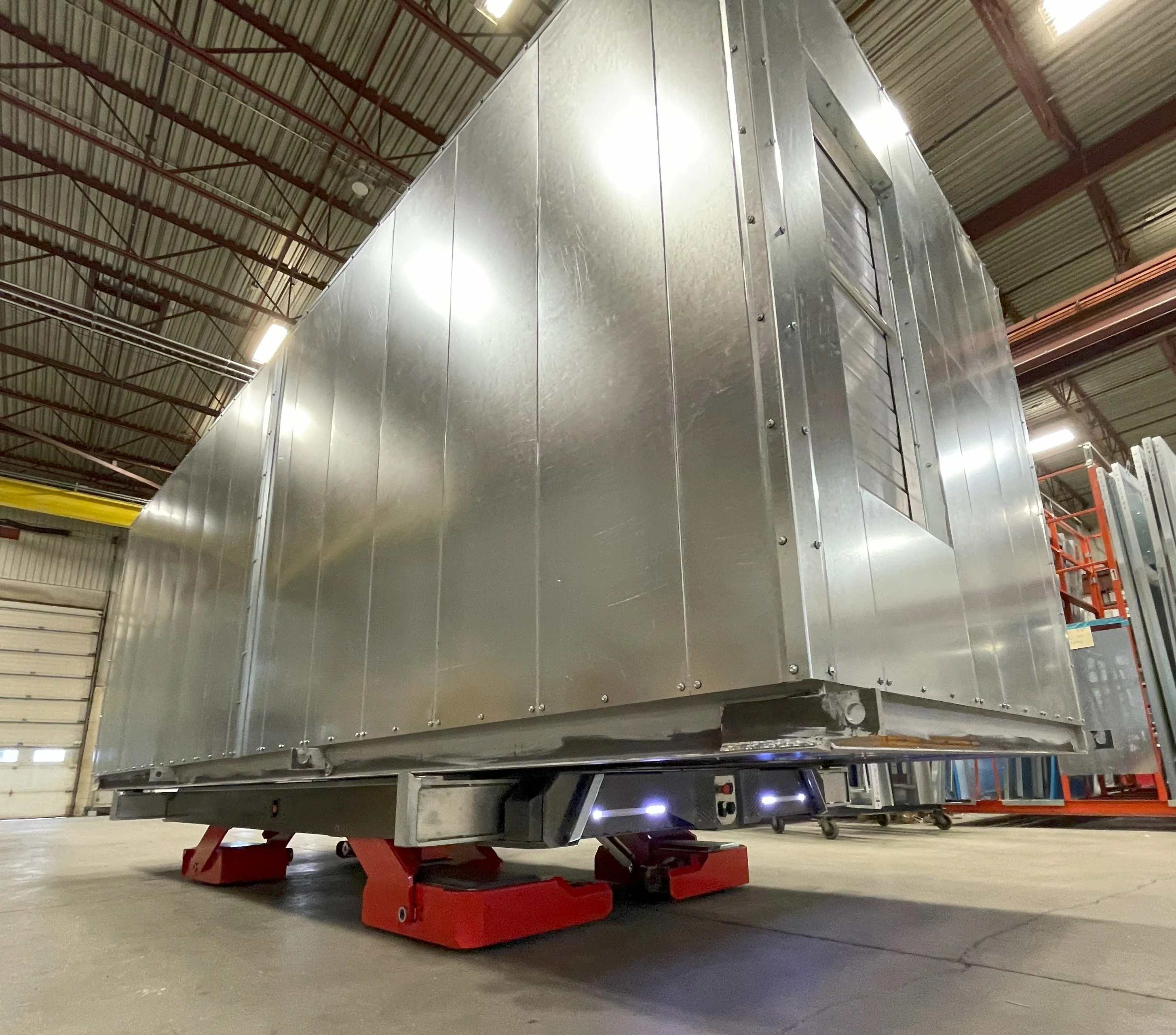

With up to 100 000 lbs payload, you can optimise your production with precise motion, customizability and high reliability to make sure your production never stop.
  • Up to 100 000 lbs payload
  • 100% custom motion
  • Pick and drop material
  • Optional lifting system
  • Drive it manually or let it do the job
  • 100% automated tasks
SEE IT IN ACTION
See it in action at our client's

Microbird - Division ecotuned

Case studie 2

Case studie 3

Case studie 4

Technologies

Through a unique combination of engineering, construction and design disciplines and expertise.

Multi-Layer Collision Avoidance

(ISO 3691-4 Compliant) The AGV is equipped with four 270° LiDAR sensors covering a 9-meter detection radius. Safety fields adapt dynamically based on the vehicle's speed and direction of travel, triggering a speed-reduction zone first, followed by a full emergency stop.

Hybrid Navigation: Code Tape + QR Code Vision System

Two onboard cameras work in tandem — one continuously reads the coded tape installed on the production floor for real-time positioning, while the other detects QR codes embedded in conveyor frames to trigger automatic outrigger extension at precise docking points.

Patented Omnidirectional Drive System

Inogec's proprietary 4-skate mechanism enables precise movement in any direction with millimeter-level accuracy. Unlike conventional AGVs limited to forward/backward motion, this platform executes 360° translations and rotations simultaneously — giving it unmatched maneuverability in tight production environments.

Safety PLC Architecture

The AGV's entire control system is built on a Safety PLC, the industrial gold standard for fail-safe operations. The operator interacts through a wireless Category 3 safety-rated remote with joystick control, ensuring that every movement — whether manual or semi-autonomous — remains deliberate, traceable, and compliant with industrial safety requirements.

Our services
03

Why Manufacturers Choose the Inogec AGV

Less manual handling. Fewer injuries. Smarter production. The Inogec AGV — industrial automation built around the way you actually work.

Heavy industrial production lines weren't designed with manual handling in mind — yet most facilities still rely on teams of workers to push, pull and position units that weigh tens of thousands of pounds. The Inogec AGV changes that equation entirely.

The most immediate impact is on your workforce allocation. Tasks that previously required 8 to 10 people straining against massive loads are now handled by a single operator guiding an intelligent, semi-autonomous platform. Your team doesn't shrink — it gets redeployed toward work that actually requires human judgment.

Repetitive heavy pushing is one of the leading causes of musculoskeletal injuries on production floors. By removing the physical effort entirely, the Inogec AGV reduces injury risk at the source — meaning fewer lost-time incidents, lower insurance exposure, and a safer environment your workers can trust.

The AGV operates in semi-autonomous mode out of the box, with a single operator confirming movements through critical zones. But the architecture is already designed to support full autonomy in future phases — no hardware swap required. As your confidence grows and your safety assessments evolve, so does your level of automation.

Real-time data matters. The AGV communicates directly with your Advanced Manufacturing System via OPC protocol, feeding live information on cycle counts, alerts, maintenance status and overall equipment effectiveness. Your production intelligence stays complete and centralized.
